Ground Unit

Equipment Overview

The surface control bridge between downhole tool, software, and field operation

Core Role

Stable control and clear feedback for gyro survey jobs

The ground unit works as the field control unit of the integrated continuous gyro survey system. It coordinates with the downhole tool, survey cable, and GYRO software to provide power supply, communication connection, status monitoring, and operation control.

Supports downhole tool power supply, connection confirmation, and field parameter monitoring
Works with GYRO software for north-seeking control, survey monitoring, and data workflow coordination
Applicable to field operation, delivery training, equipment commissioning, and maintenance checks

220 VAC

Surface power input

-20°C~70°C

Operating temperature

225 mA

Cable power boundary

GYRO

Software coordination

Product Diagram

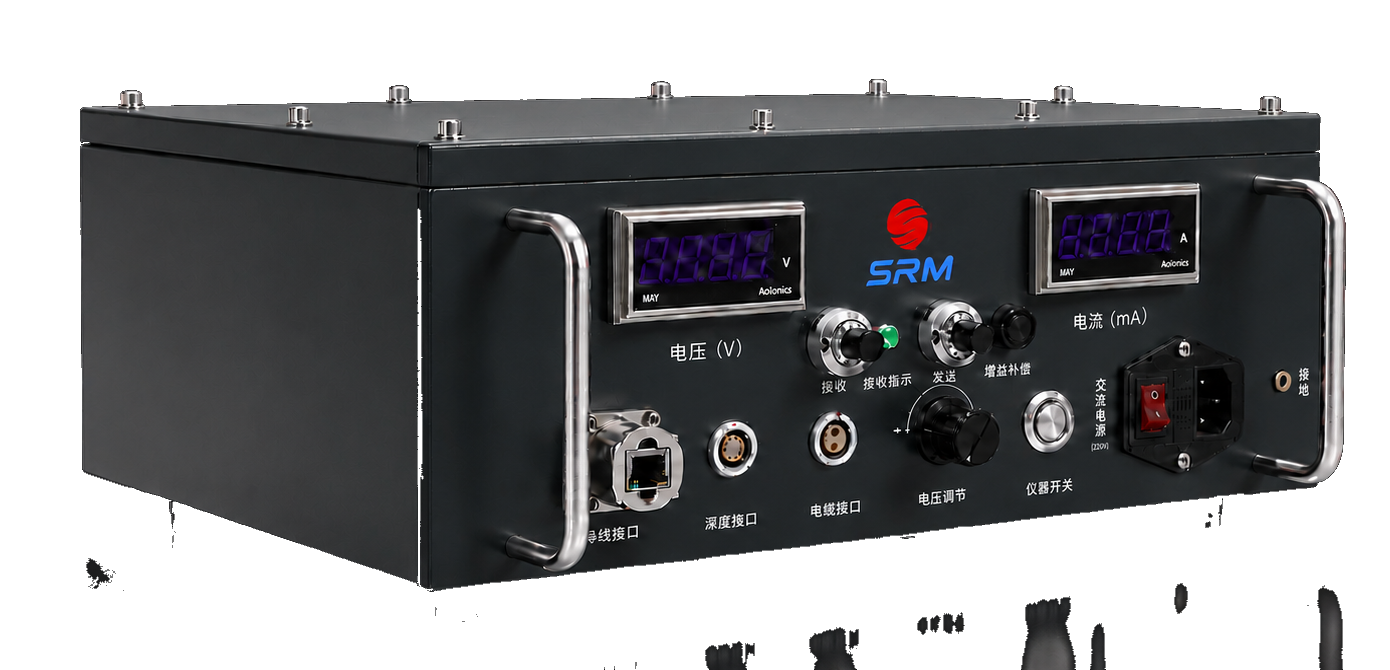

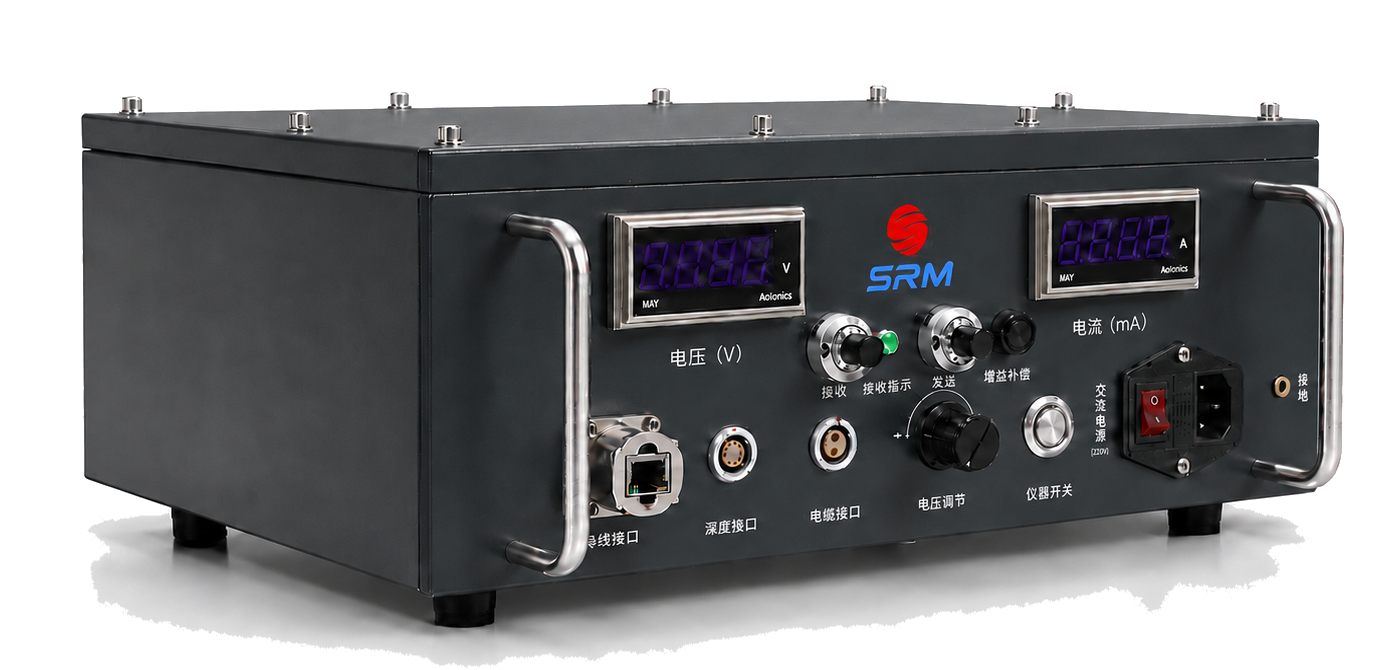

Ground unit appearance, interfaces, and field-control relationship

A visual summary of the ground unit appearance, panel interfaces, power and communication links, and software-coordinated operation.

Surface Host Box

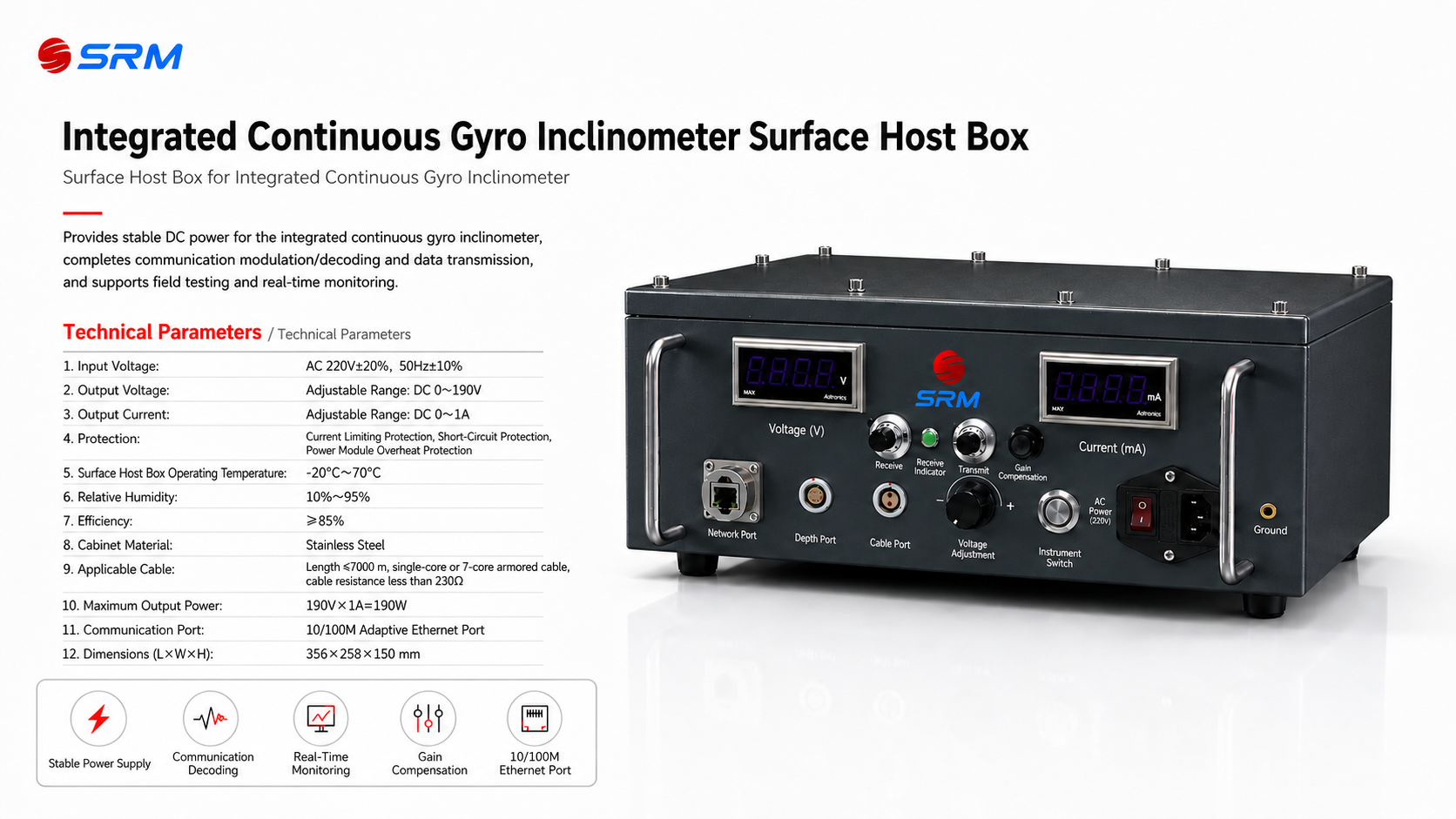

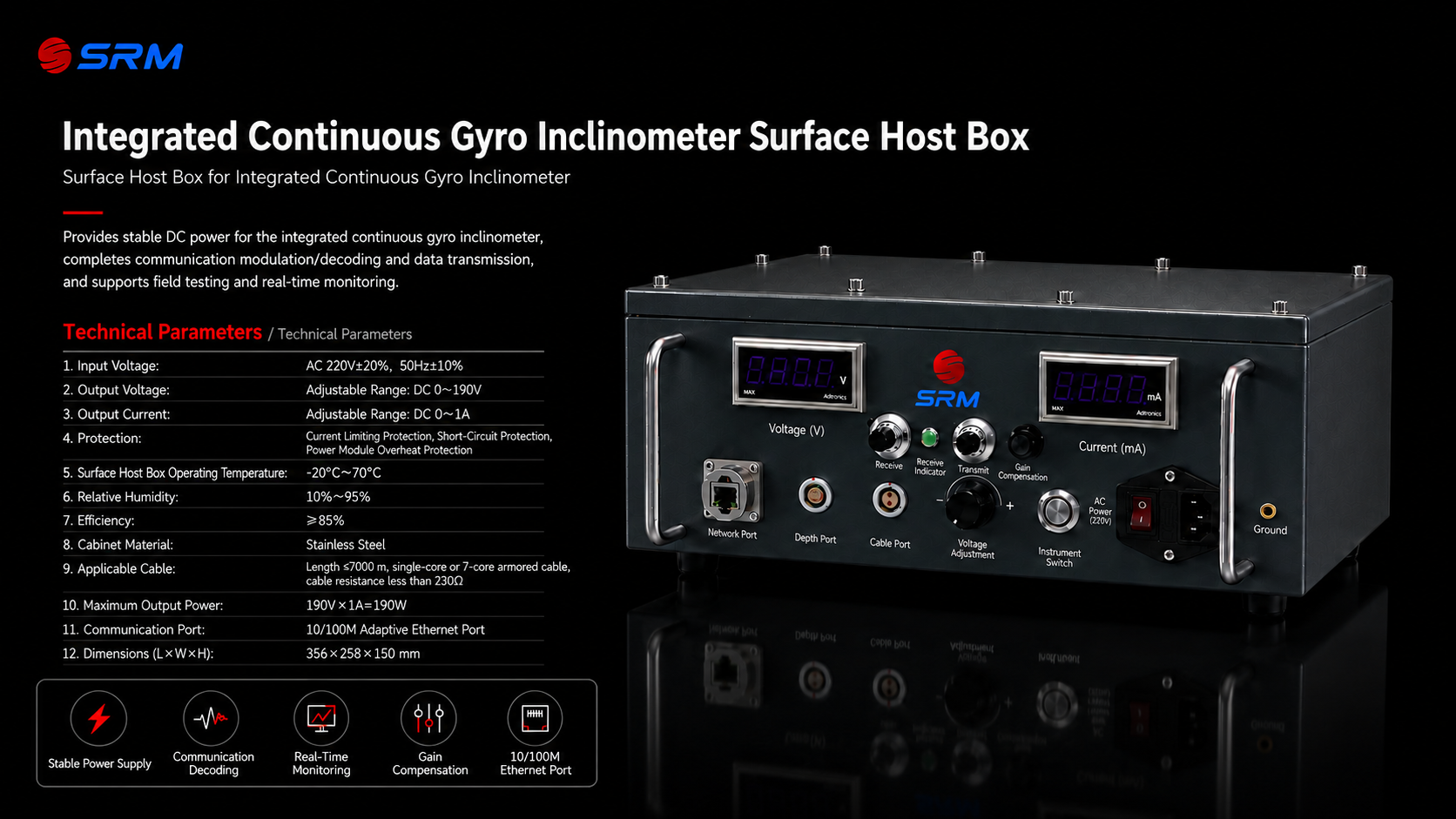

Surface Host Box for Integrated Continuous Gyro Inclinometer

Integrated Continuous Gyro Inclinometer Surface Host Box

Provides stable DC power for the integrated continuous gyro inclinometer, handles communication modulation, decoding, and data transmission, and supports field testing and real-time monitoring.

Technical Parameters

Input VoltageAC 220V±20%, 50Hz±10%

Output VoltageAdjustable range: DC 0~190V

Output CurrentAdjustable range: DC 0~1A

ProtectionCurrent limiting, short-circuit, and power-module overheat protection

Host Temperature-20℃~70℃

Relative Humidity10%~95%

Efficiency≥85%

Enclosure MaterialStainless steel

Adapted CableLength<7000m single-core or 7-core armored cable, resistance<230Ω

Max Output Power190V×1A=190W

Communication Port10/100M adaptive Ethernet port

Dimensions356×258×150 mm (L×W×H)

Stable Power Communication Decoding Real-time Monitoring Gain Compensation 10/100M Port

Functional Scope

Control, monitoring, and coordination for field survey operations

Power & Connection

A stable surface connection point

Panel interfaces, status displays, and control components support downhole tool power supply, communication connection, and basic status confirmation.

Software Coordination

Works with GYRO software

Supports field parameter reading, survey-state tracking, north-seeking control, and data acquisition workflow coordination.

Delivery Training

Supports training, commissioning, and maintenance

Helps customers understand the control panel, connection workflow, parameter status, and routine maintenance checks.

Image Gallery

Ground unit and software coordination images

Views of the ground unit, operation scenes, software connection, and earlier prototype materials.

Ground unit and GYRO software operating together.

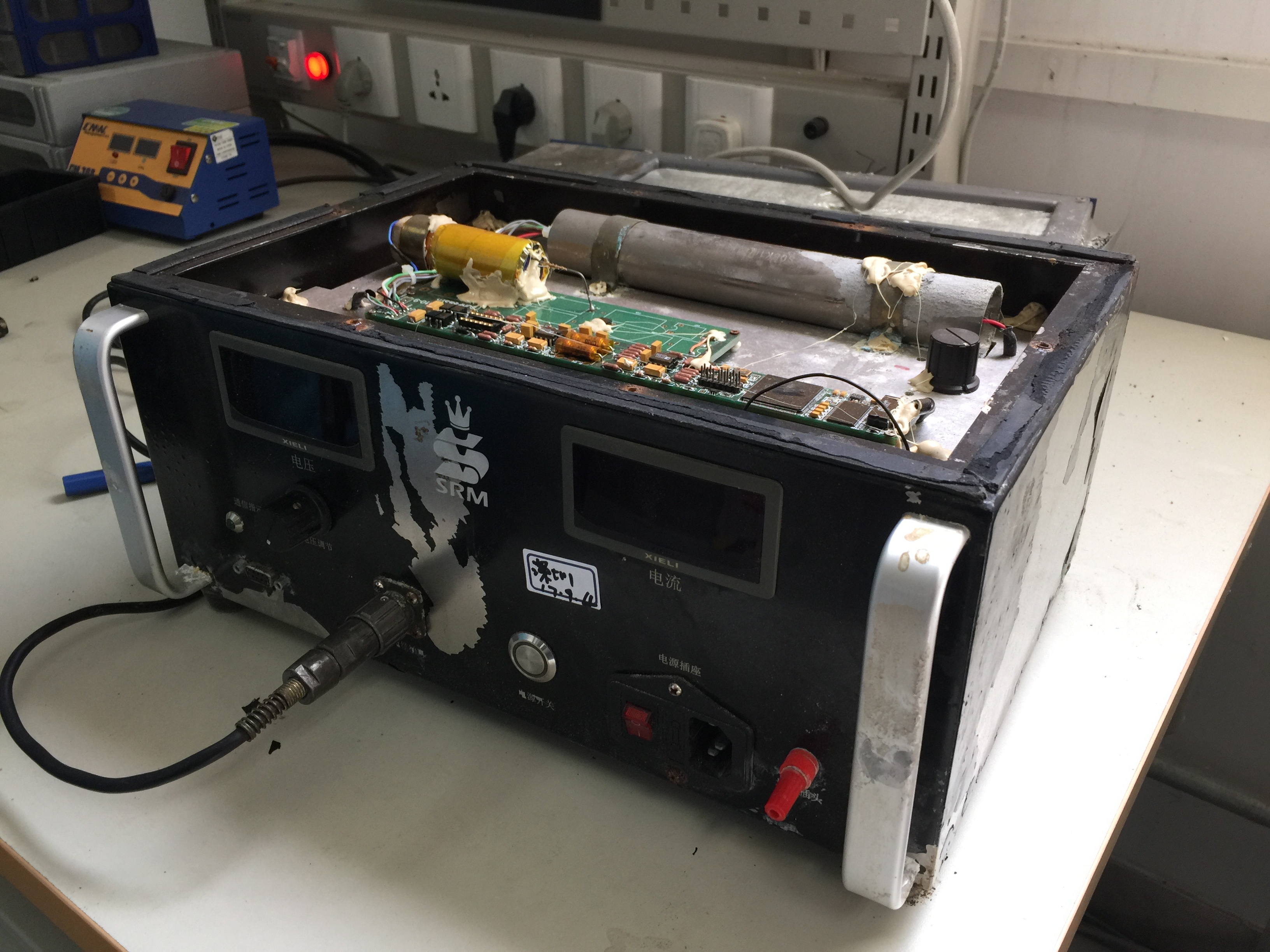

Earlier ground-unit prototype and development material.

Material Request

Related material

[CN] Surface Host Box Operation ManualChinese operation manual for connection, power supply, communication, monitoring, and field operation.

Submit Request

[EN] Surface Host Box Operation ManualEnglish operation manual for the surface host box.

Submit Request

[CN] Surface Host Box Field Training SlidesChinese training slides for surface host box teaching, operation training, and delivery support.

Submit Request

Materials are provided after request review so that technical support can be matched to the intended project use.
