Tool System

Continuous optimization for delivery preparation, assembly, and field stability

The supporting tool system covers storage, mechanical calibration, tool-string resources, centralizers, guide shoes, tripod stability, and field accessory management, providing engineering support for delivery and field operation.

Improve instrument storage, transport protection, and field identification management
Optimize calibration, assembly, tool-string setup, and operation accessories
Use field feedback to improve stability, usability, and delivery efficiency

Tool Matrix

Supporting Tool Optimization

SRM supporting tools cover transport protection, assembly and calibration, downhole centering, running guidance, and field support for integrated continuous gyro survey delivery, operation, and maintenance validation.

Storage & Protection

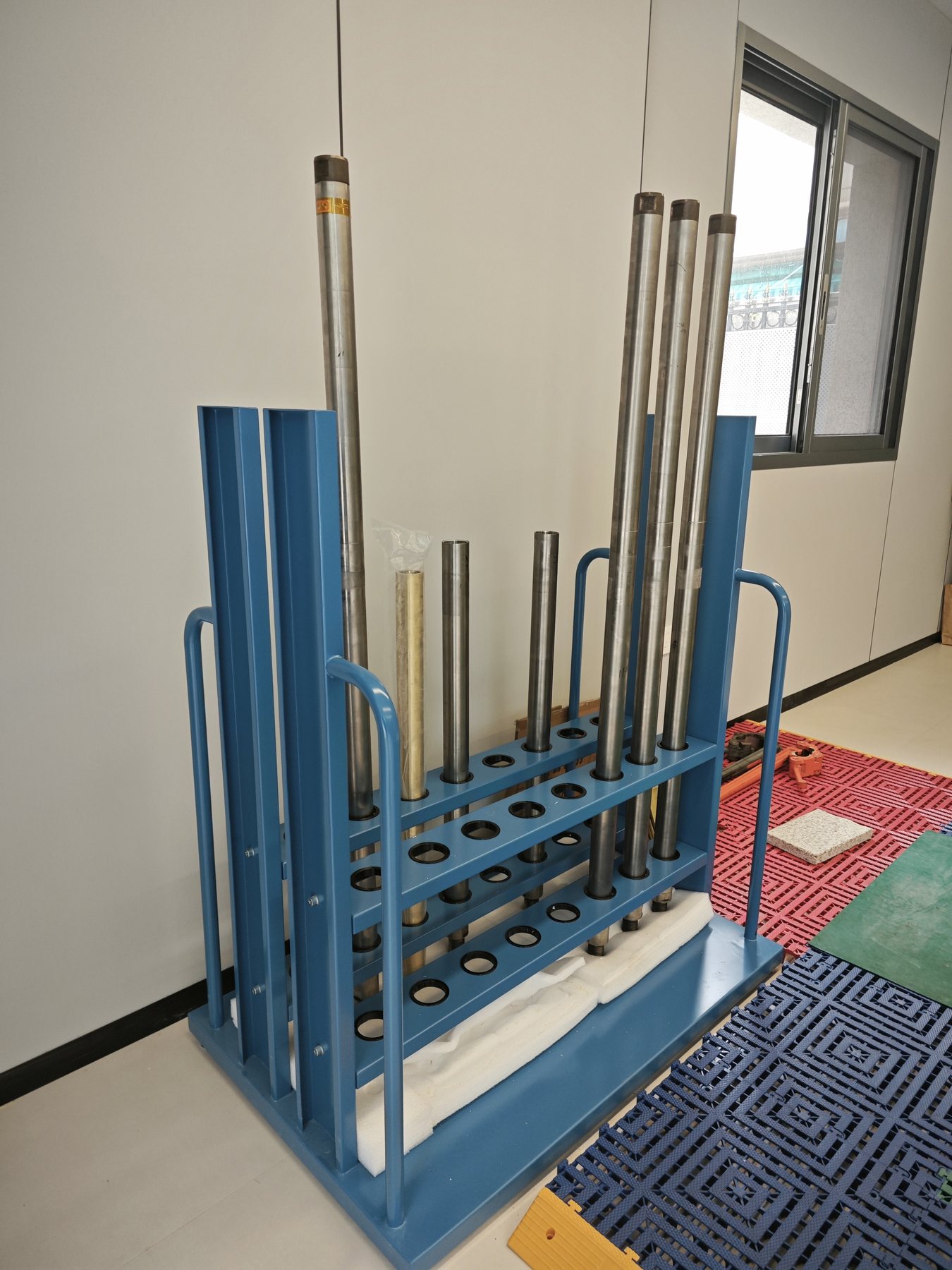

Instrument Storage and Transport Protection

UseOrganized storage, transport protection, and field inventory control for gyro survey tools, surface units, and accessories.

SceneFactory delivery, base handover, field transport, and maintenance return.

Calibration Bench

Mechanical Calibration Bench

UseTool-string leveling, mechanical calibration, assembly verification, and delivery acceptance.

SceneProduction maintenance, base training, accuracy verification, and delivery inspection.

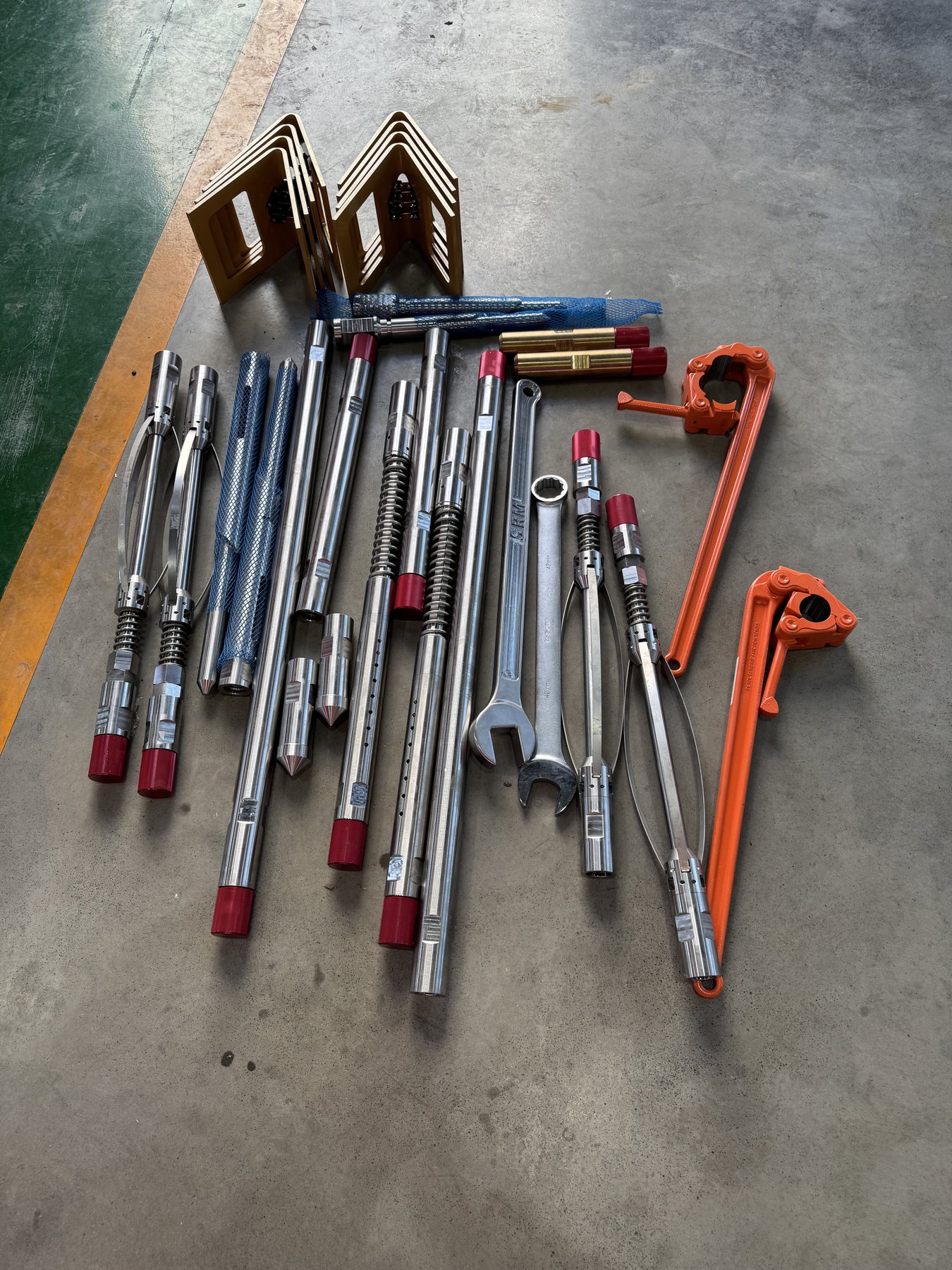

Tool String Accessories

Tool-String Accessories

UseSupport tool-string connection, assembly preparation, accessory identification, and field replacement.

SceneOffshore platform, onshore wellsite, delivery training, and field service.

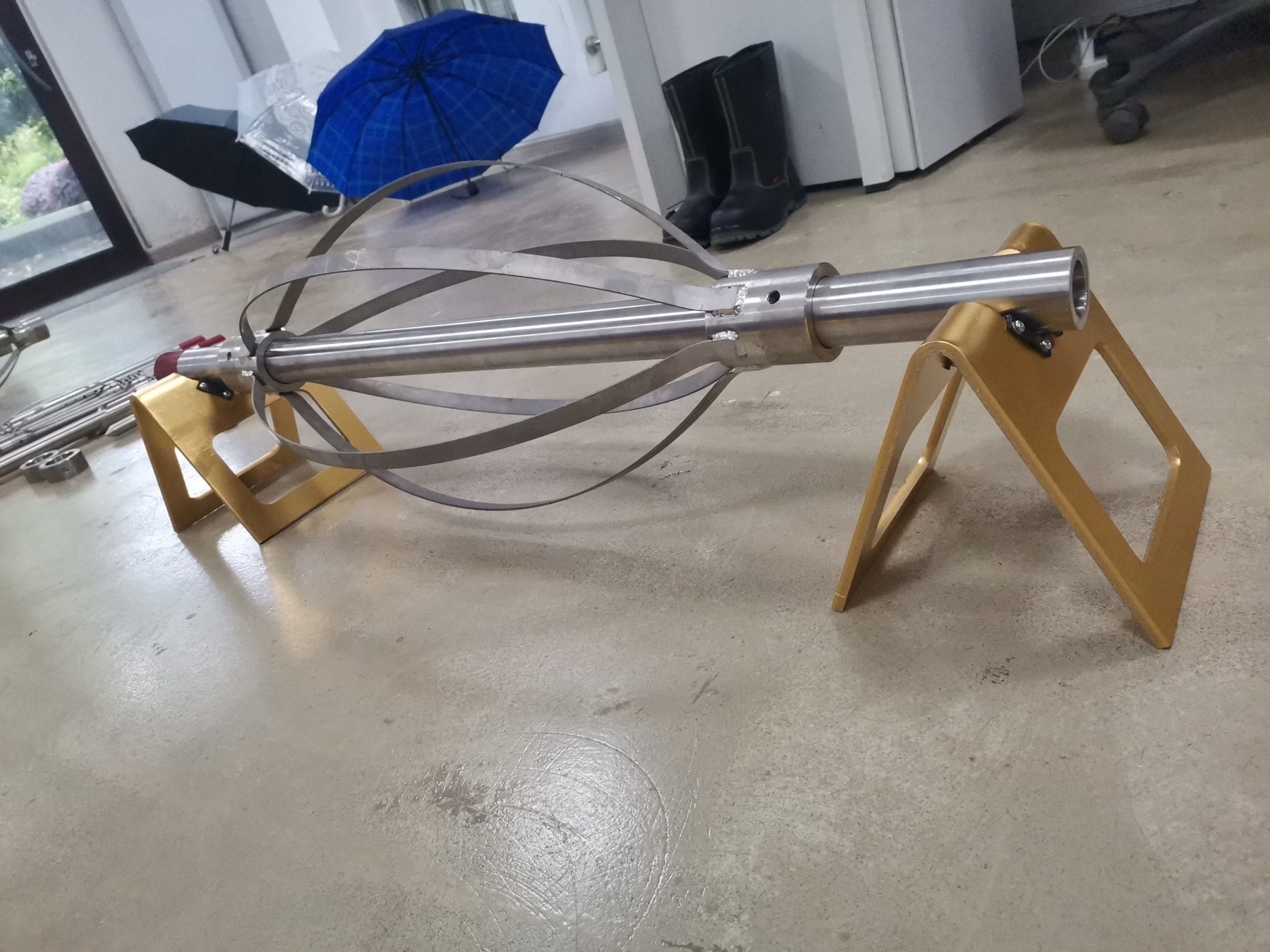

Centralizer

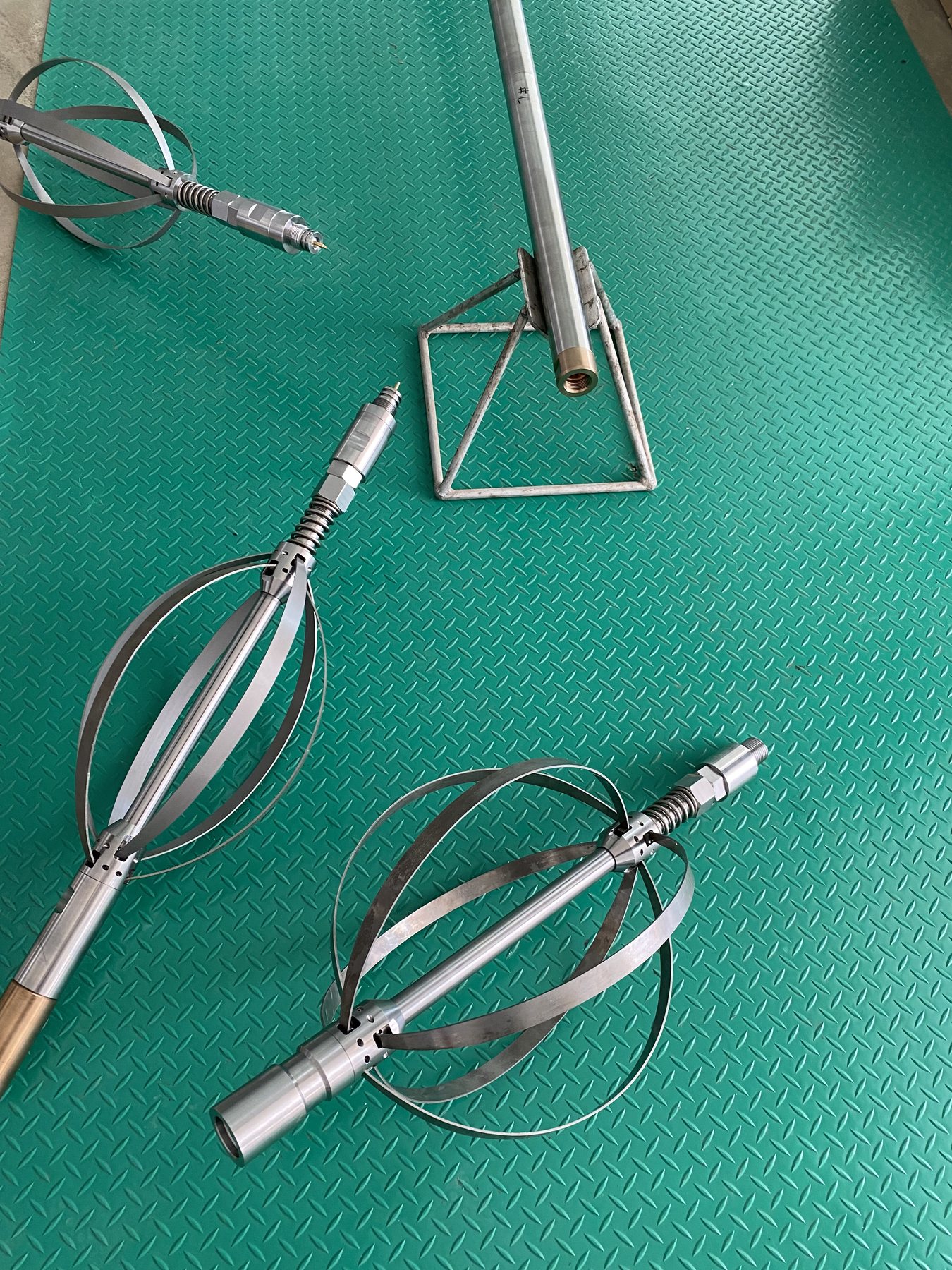

Bow-Spring Centralizer

UseImprove downhole centering stability and reduce eccentric wear and running risk.

SceneComplex well conditions, continuous survey, running test, and solution validation.

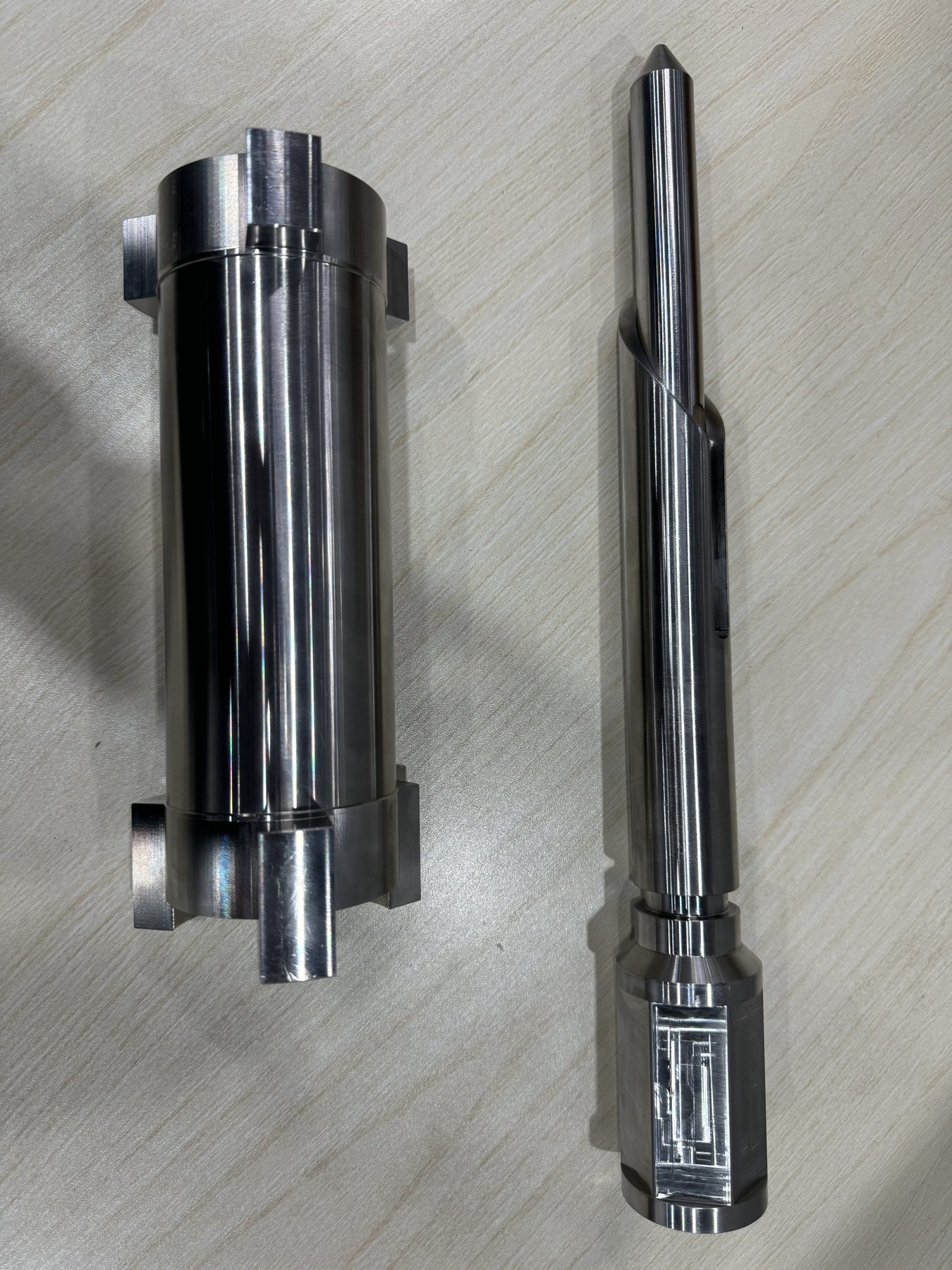

Guide Shoe

Guide Shoe and Orientation Key

UseRunning guidance, end protection, and orientation identification for improved tool-string passability.

SceneTool-string running, complex-condition adaptation, and field assembly inspection.

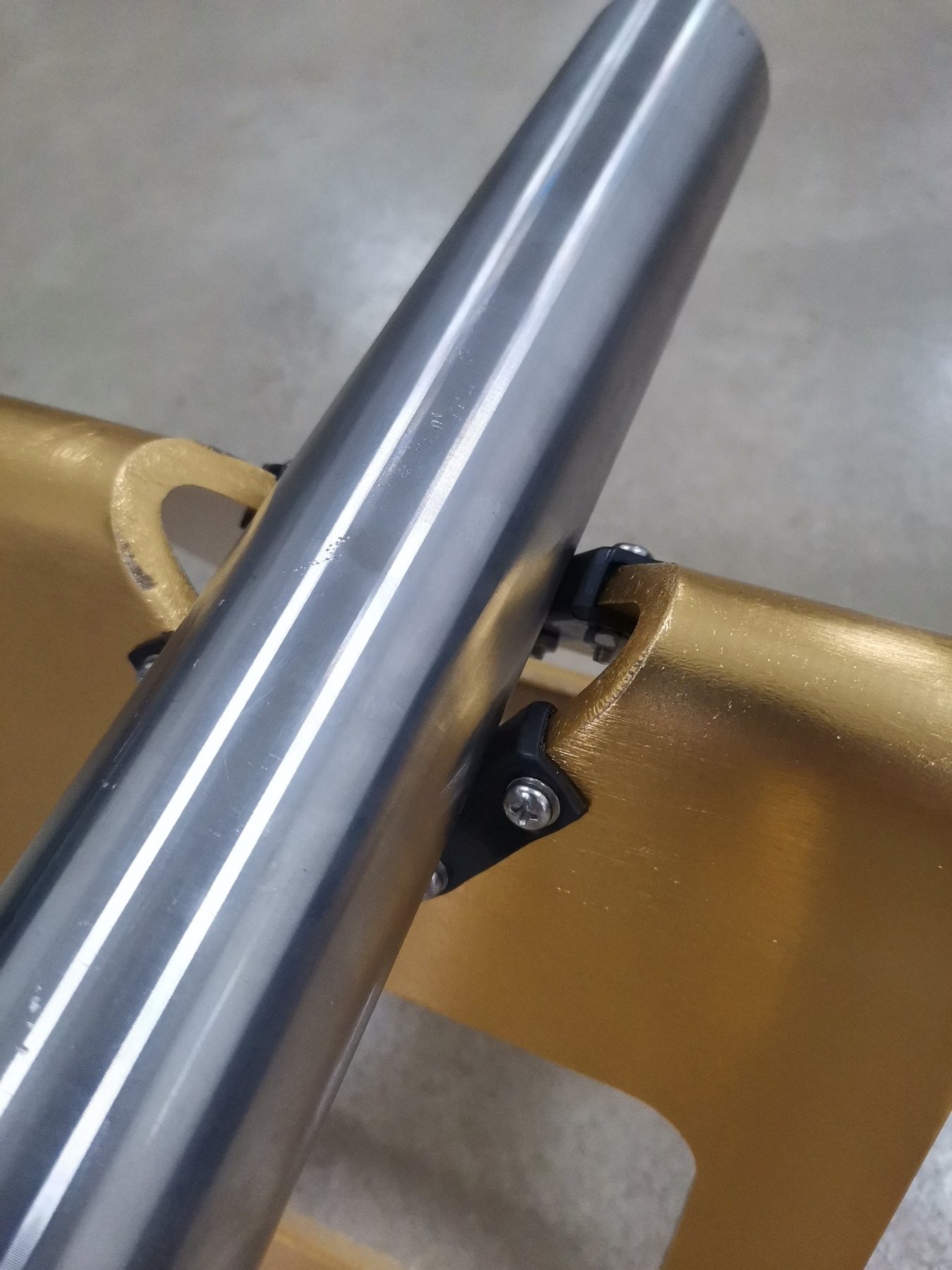

Field Support

Tripod and Field Supports

UseImprove support, anti-slip performance, and temporary fixing conditions during field operation.

SceneEquipment operation, training delivery, field preparation, and temporary support.

Supporting Tools

Supporting Tools and Field Accessories Gallery

Storage, calibration, assembly, centralizers, guide shoes, tripods, and auxiliary tool optimization records.

Integrated continuous gyro survey tool storage and packing.

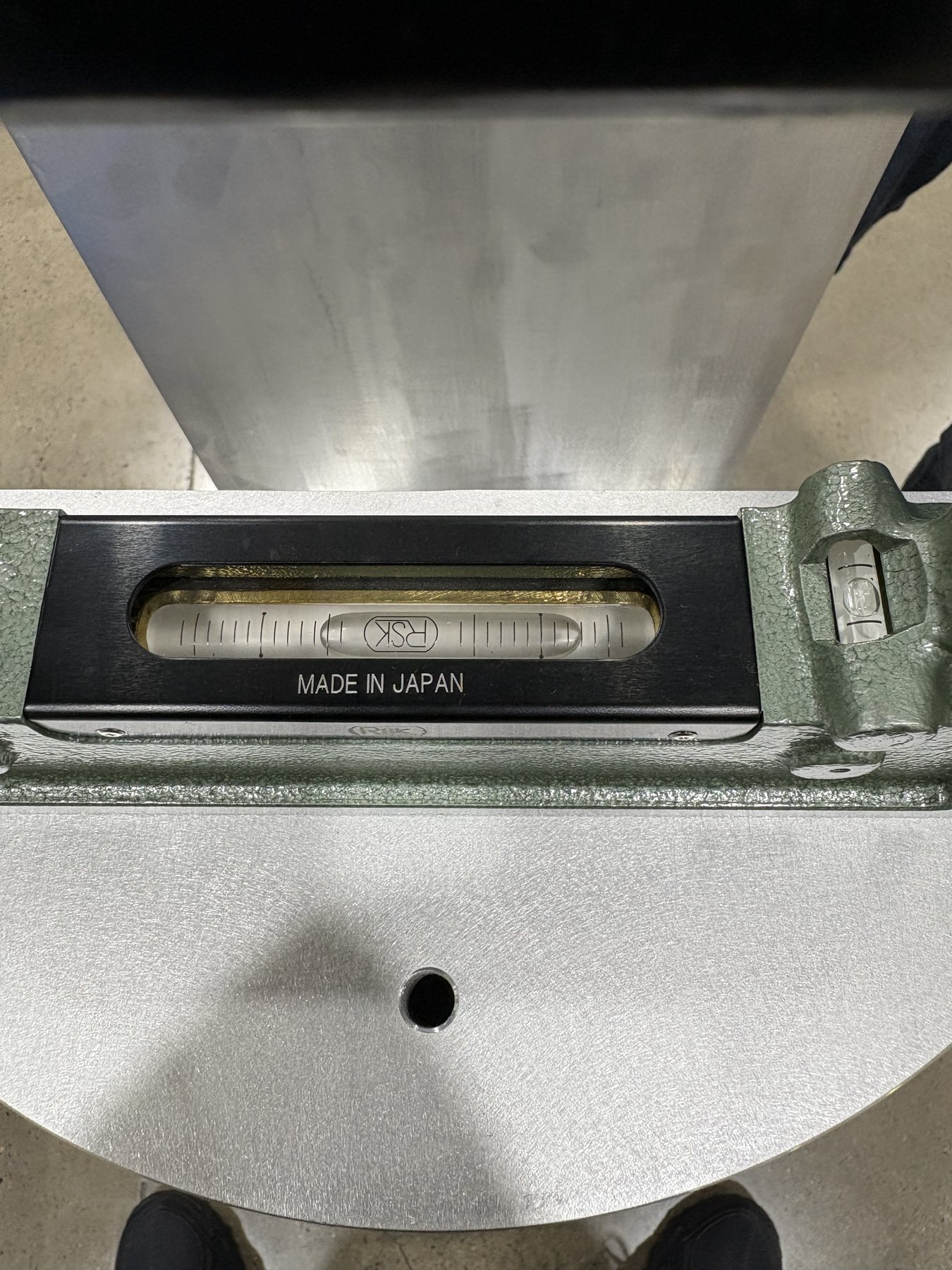

Mechanical calibration bench leveling and adjustment.

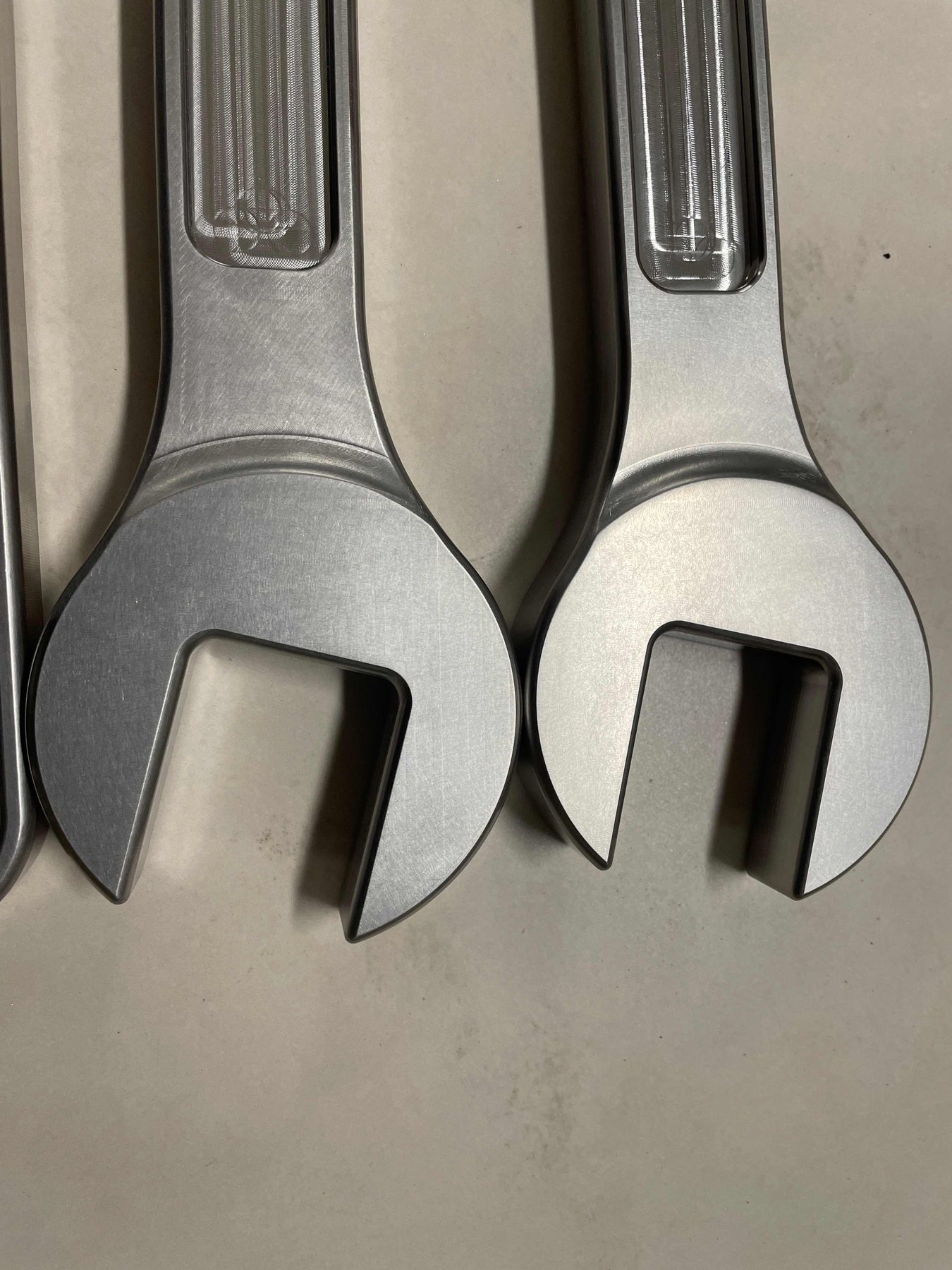

Instrument assembly and tool-string setup.

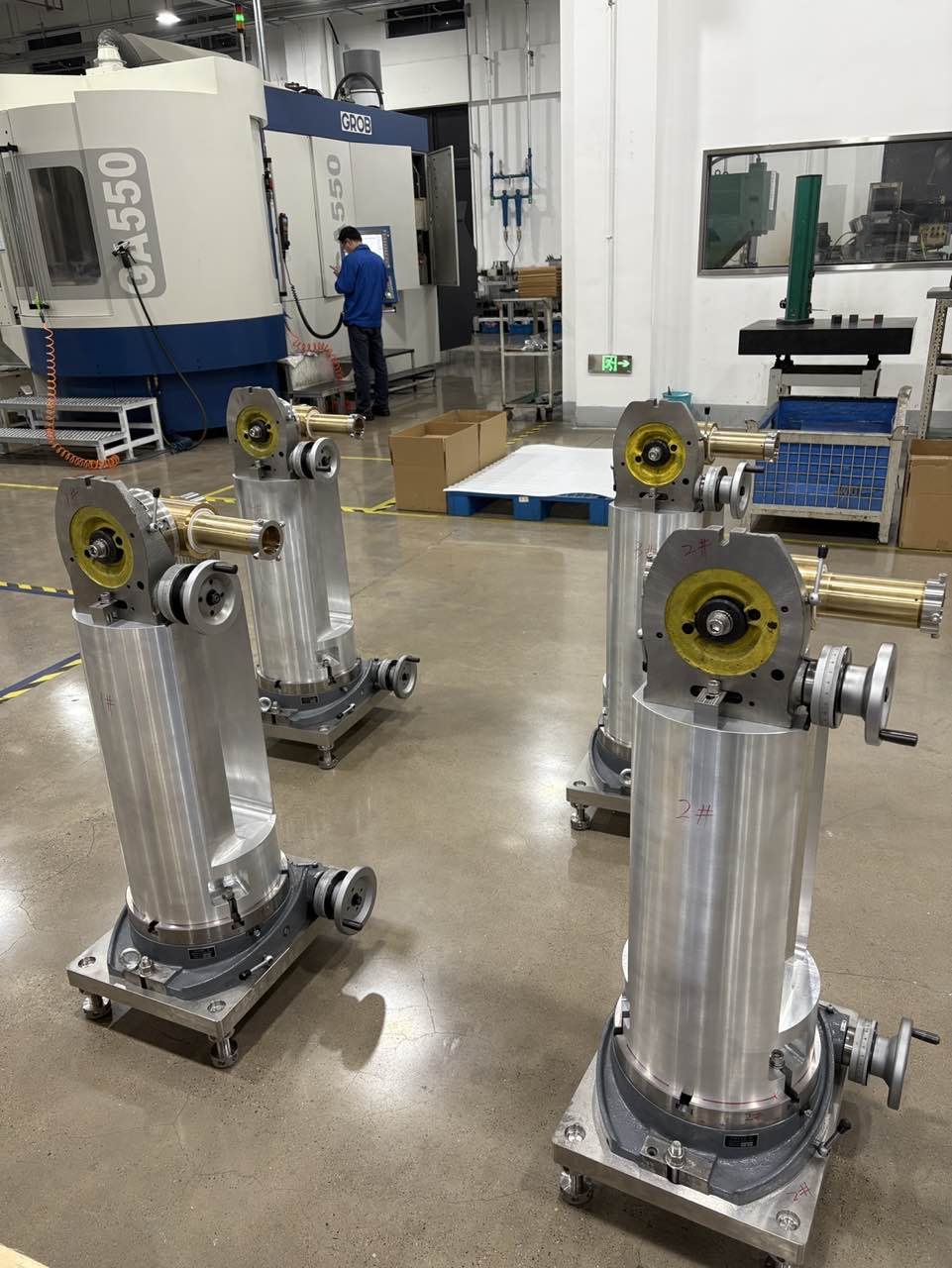

Mechanical calibration bench production acceptance.

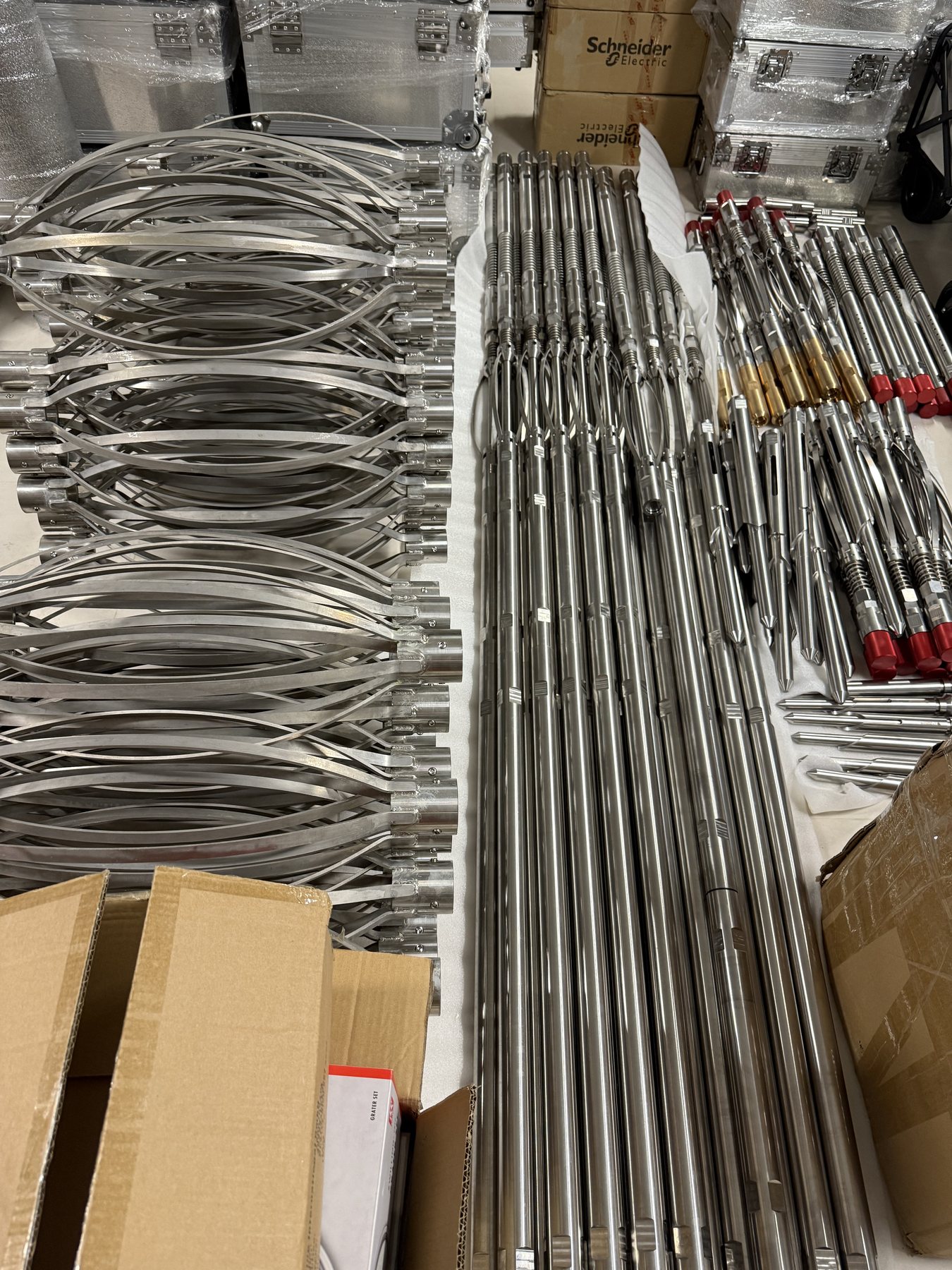

Tool-string accessories and supporting tools.

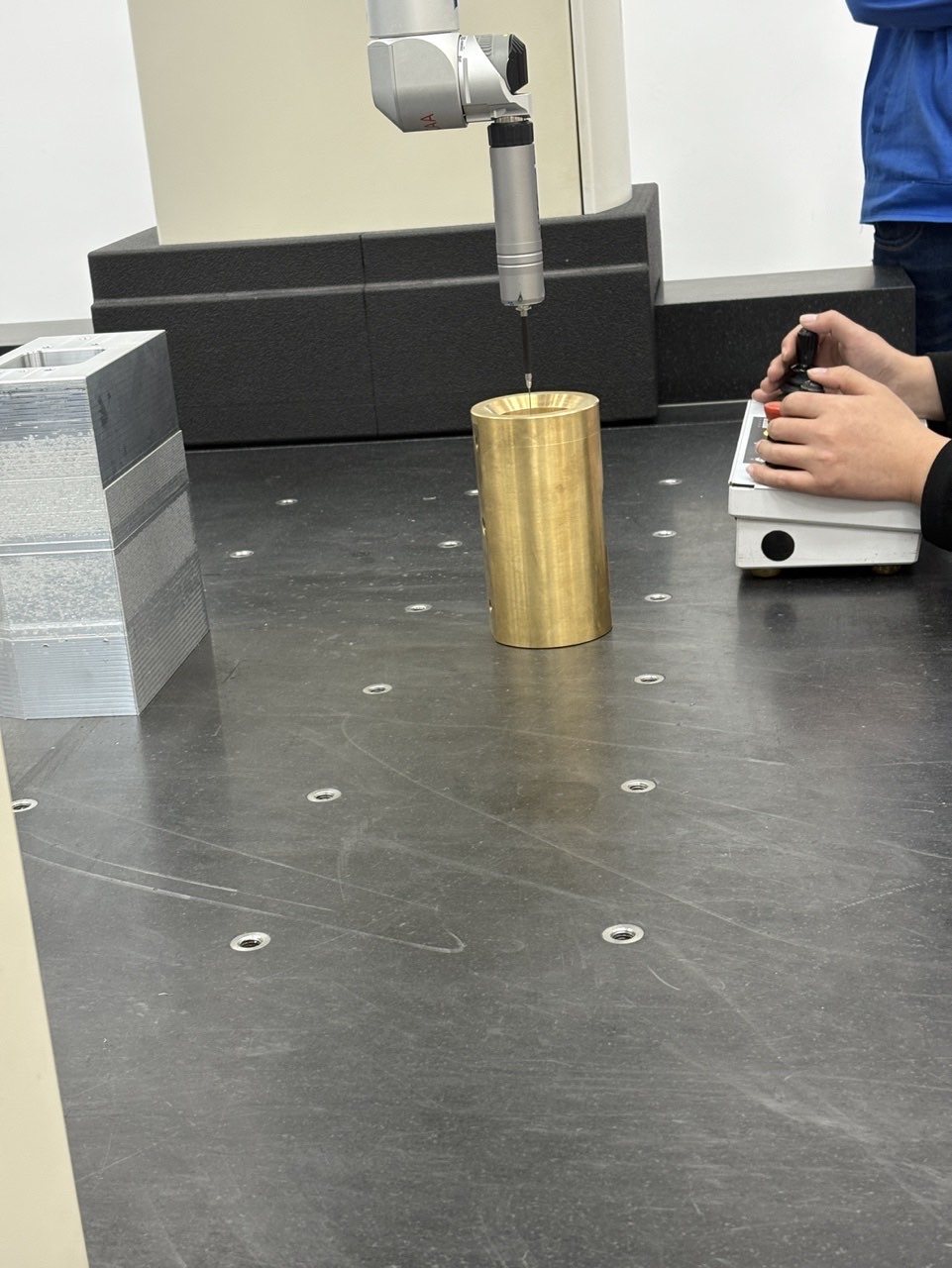

Mechanical calibration bench optimization.

Anti-slip tripod upgrade for field operation stability.

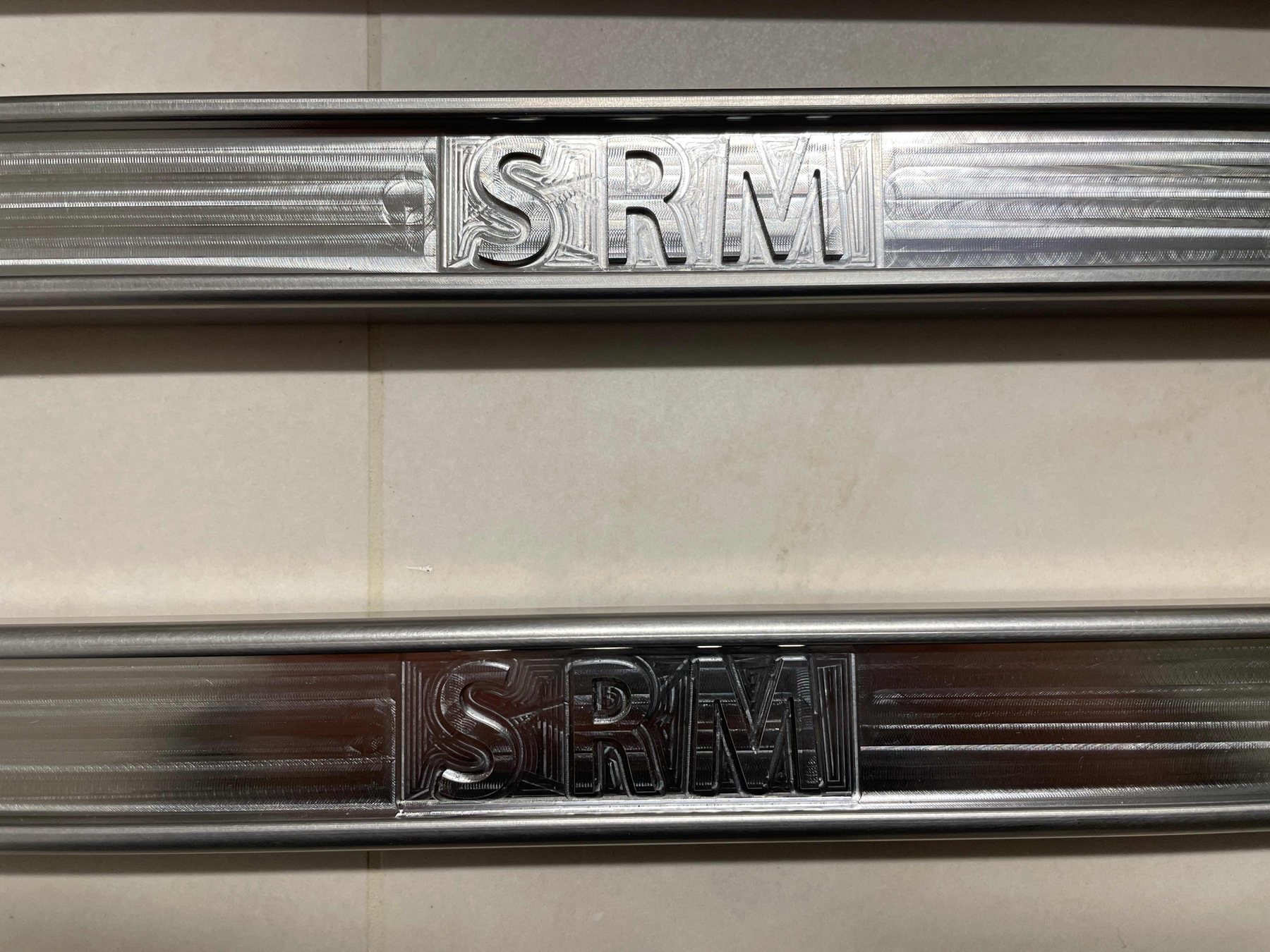

SRM supporting tools and field operation capability.

Upgraded guide shoe and orientation key.

Supporting tools and field operation support capability.

Image Gallery

Supporting Tools and Transport Protection

Tool details and shock-resistant transport case.

Branded tool detail and field tool management.

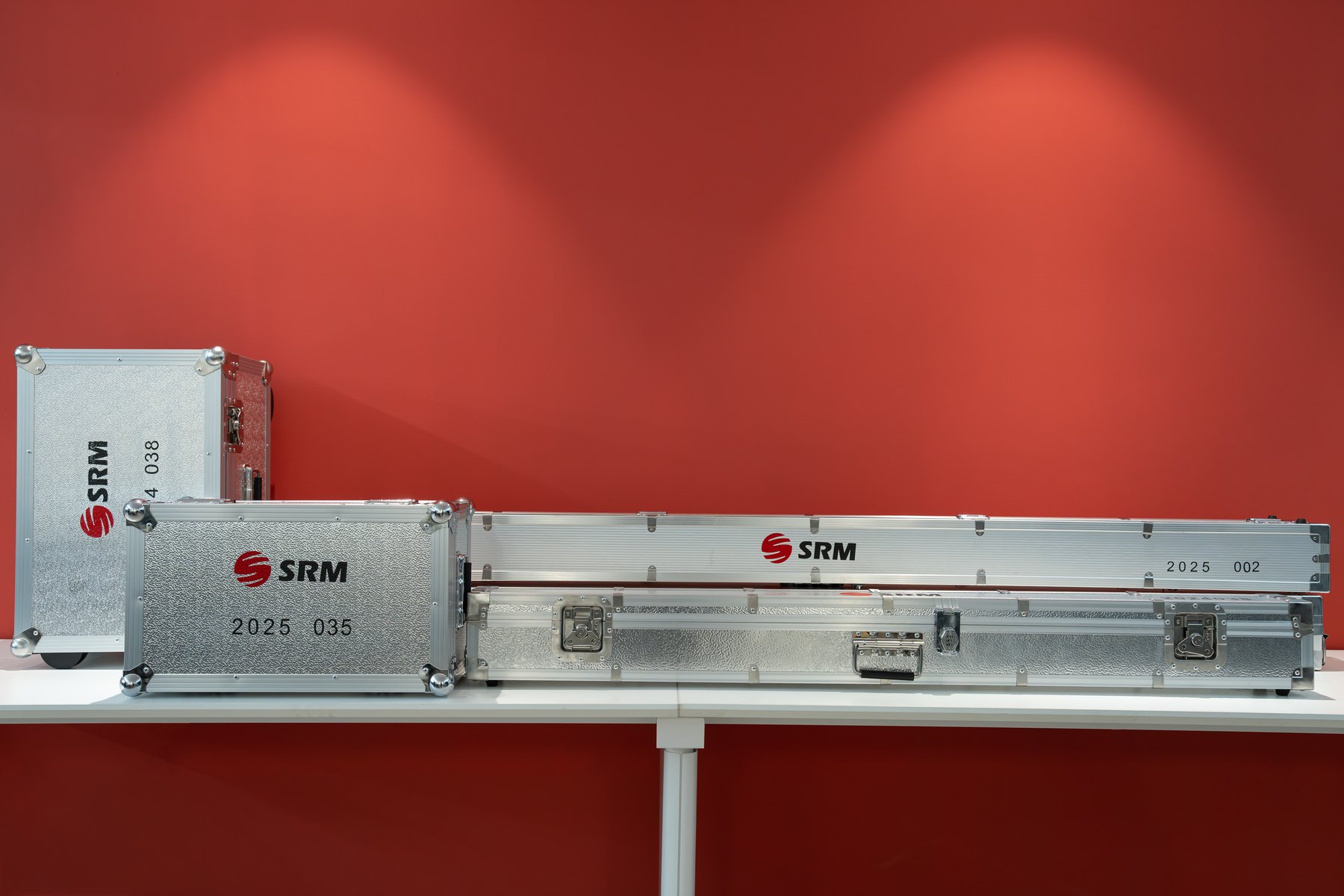

Shock-resistant transport case for instrument protection and delivery management.
